- Country
- Germany
- Manufacturer / Brand
- Dreipunkt-Gerätebau, Willy Hütter, Nürnberg
- Year
- 1951/1952
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 14201
-
- alternative name: Radio-Hütter
- Brand: Hütter, W. (Radio-Versand)

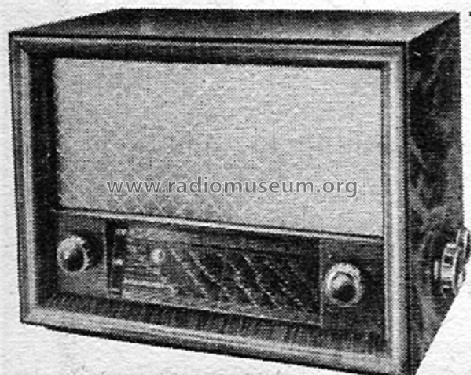

Reklameblatt des Herstellers
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Atlantis - Dreipunkt-Gerätebau, Willy
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 485 x 365 x 290 mm / 19.1 x 14.4 x 11.4 inch
- Notes
-
Bausatz mit Spulensatz 801; 4 x KW
Variante "Universal 604": 6-Kreis-Super mit L, M, K, UKW
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 3
- Mentioned in
- Historische Radios Band III (76)
- Literature/Schematics (1)
- - - Manufacturers Literature (Dreipunkt Prospekt)
