C 901

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Year
1973–1978

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
29153

Schematics

C 901; Dual, Gebr. (ID = 386725) R-Player — Dual, Gebr. C 901 (3)

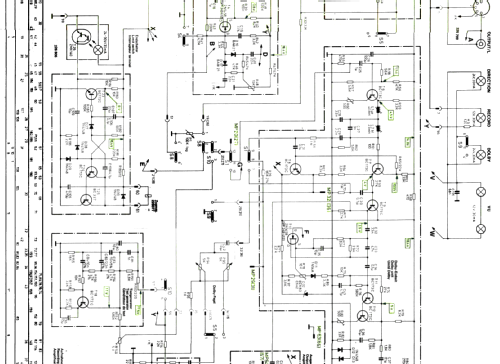

C 901; Dual, Gebr. (ID = 386726) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 386727) R-Player — Dual, Gebr. C 901 (3)

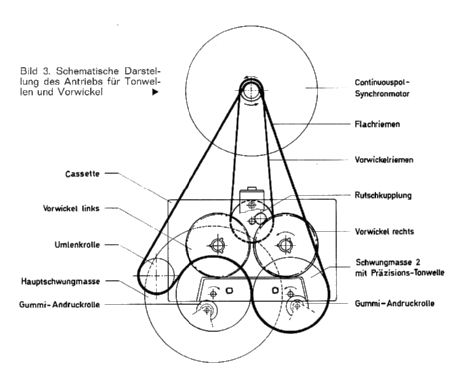

C 901; Dual, Gebr. (ID = 645819) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663084) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663085) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663086) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663087) R-Player — Dual, Gebr. C 901 (3)

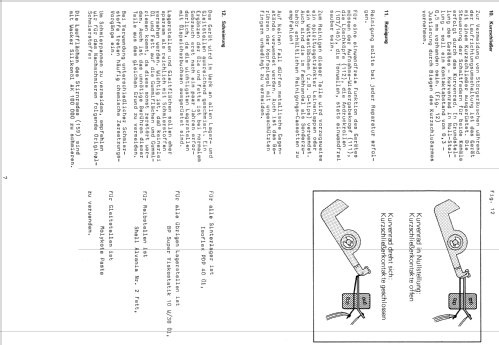

C 901; Dual, Gebr. (ID = 663088) R-Player — Dual, Gebr. C 901 (3)

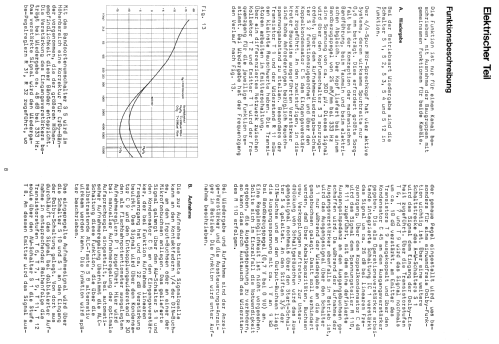

C 901; Dual, Gebr. (ID = 663089) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663090) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663091) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663092) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663093) R-Player — Dual, Gebr. C 901 (3)

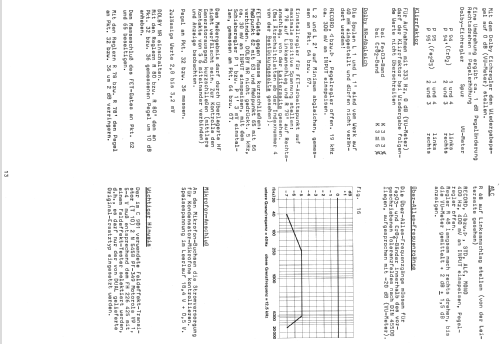

C 901; Dual, Gebr. (ID = 663094) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663095) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663096) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663097) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663098) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663099) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663100) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663101) R-Player — Dual, Gebr. C 901 (3)

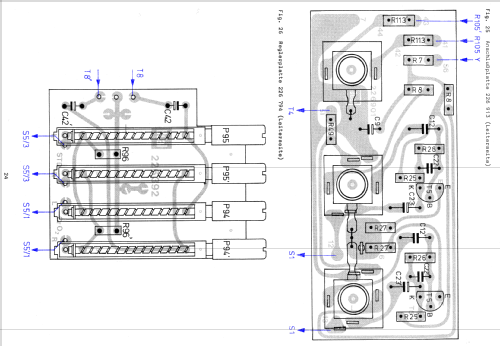

C 901; Dual, Gebr. (ID = 663102) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663103) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663104) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663105) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663106) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 663107) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 2326884) R-Player — Dual, Gebr. C 901 (3)

C 901; Dual, Gebr. (ID = 3014505) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 3014506) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 1748350) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 408795) R-Player — Dual, Gebr. C 901 (2)

C 901; Dual, Gebr. (ID = 424845) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 385475) R-Player — Dual, Gebr. C 901 (2)
Bild vom Deckblatt der Bedienungsanleitung

C 901; Dual, Gebr. (ID = 408796) R-Player — Dual, Gebr. C 901 (2)

C 901; Dual, Gebr. (ID = 424843) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 424844) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 663607) R-Player — Dual, Gebr. C 901 (2)
Gerät eines Sammlerkollegen

C 901; Dual, Gebr. (ID = 663608) R-Player — Dual, Gebr. C 901 (2)
Gerät eines Sammlerkollegen

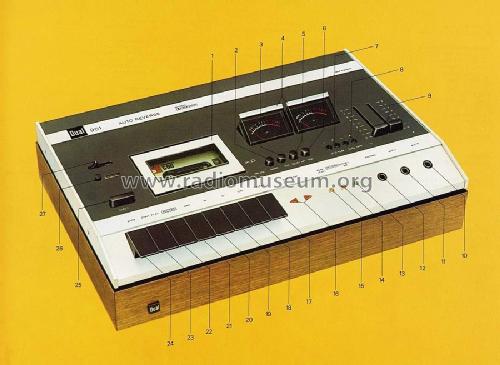

C 901; Dual, Gebr. (ID = 664979) R-Player — Dual, Gebr. C 901 (2)
Scan von der Bedienungsanleitung

C 901; Dual, Gebr. (ID = 664980) R-Player — Dual, Gebr. C 901 (2)
Scan von der Bedienungsanleitung

C 901; Dual, Gebr. (ID = 931112) R-Player — Dual, Gebr. C 901 (1)

C 901; Dual, Gebr. (ID = 1840125) R-Player — Dual, Gebr. C 901 (2)

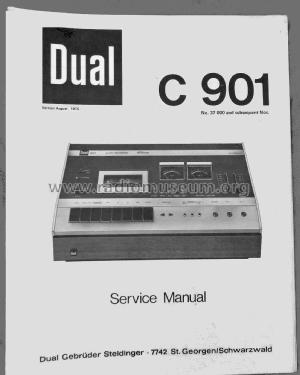

Service Manual
