C814

• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1981/1982

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 147676

• Picture
• Schematics

Previous Next

Previous Next

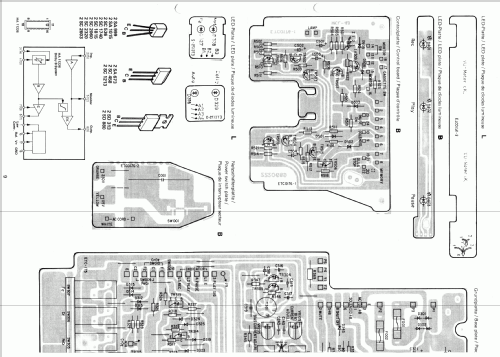

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 115 or 115; 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: C814 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 112 x 290 mm / 17.3 x 4.4 x 11.4 inch

• Notes

• C814, Stereo-System, Direct Load & Lock System, Dolby/MPX.

  Type: 2-head, single compact cassette deck
  Track System: 4-track, 2-channel stereo
  Tape Speed: 4.75 cm/s
  Heads: 1 x record/playback, 1 x erase
  Tape Type: type I, FeCr, CrO2, Metal
  Noise Reduction: B
  Frequency Response: 20Hz to 18kHz  (Metal tape)
  Signal to Noise Ratio (Dolby B): 63dB standard / 66dB metal tape
  Wow and Flutter: 0.045%
  Input: 80mV (line), 0.4mV (mic)
  Output: 0.56V (line)

  Version for USA / Canada has 60 Hz, 115 V mains only.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)
