- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1985 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 228563
Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 51
- Semiconductors
- 2SC2634 2SC1685 2SC1384 2SD1302 2SD592 2SD880 2SD549 2SD893 2SA684 2SA564 TEA0665 AN6556 TC4066 CD4001 AN6882 KIA7805 TC4049 TMP4321 BA6109 DN6838
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 115/230 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org

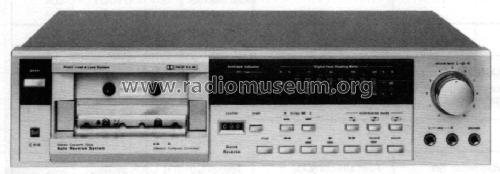

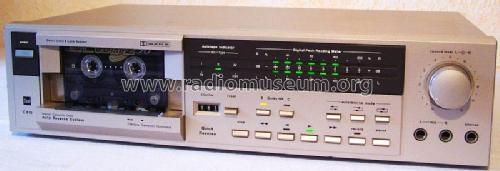

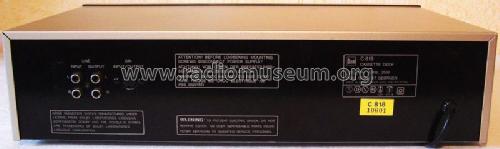

- Model: C 818 - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Notes
-
HiFi-Cassettendeck, Autoreverse, 3 Bandsorten, Dolby B/C, Mikrophoneingang.
13 IC, alle Halbleiter nur einmal aufgeführt
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
