- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124246

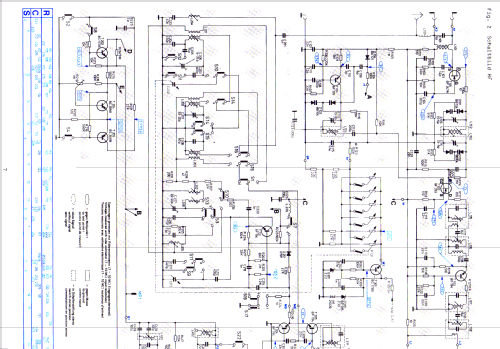

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 50
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 16 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-117; 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: CR230W - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 108 x 335 mm / 16.5 x 4.3 x 13.2 inch
- Notes
- ICs: 3.
NF-Ausgangsleistung 2× 20 W (Sinus); Quadroeffekt.
Weisse Konsole. Siehe auch CR230 in nussbaumfarbener Konsole.
- Net weight (2.2 lb = 1 kg)
- 7.7 kg / 16 lb 15.4 oz (16.96 lb)
- Source of data
- Handbuch VDRG 1977/1978
- Mentioned in
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
