• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28380

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     18 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

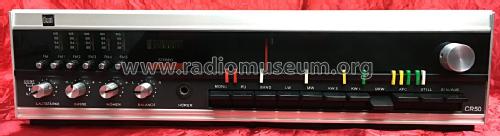

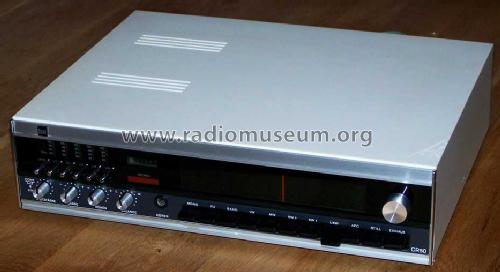

• Model: CR50W - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 108 x 320 mm / 16.5 x 4.3 x 12.6 inch

• Notes

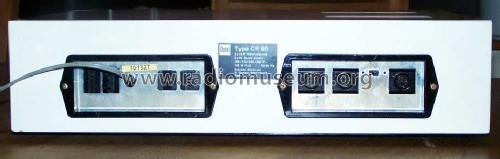

• Vollstereo, NF-Verstärker mit zwei Endstufen je 18 W (Sinus). Gehäuse: Schleiflack, weiß; siehe auch CR50 in Nußbaum, natur. Eingänge: Phono-Magnet, Phono-Kristall, Tonband. Ausgänge: 2 LS, Kopfhörer.
  KW1: 6,7-15,4 MHz, KW2: 5,6-6,6 MHz.
  2G-Schmelzeinsätze 1,25 A mT zur Absicherung der Endstufen.

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Price in first year of sale
• 860.00 DM

• External source of data
• Erb

• Source of data

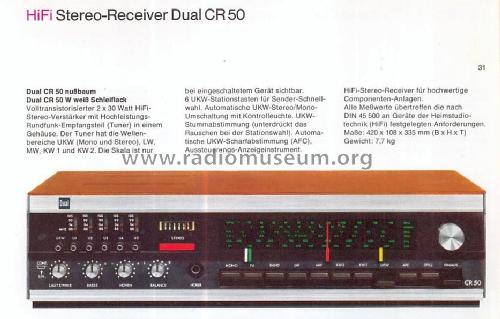

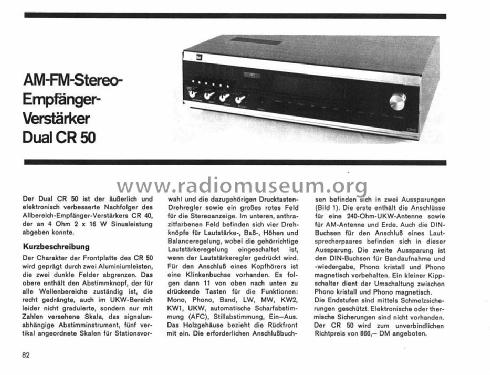

• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
