- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1973/1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 117481
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-125; 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: CS22W - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 180 x 372 mm / 16.5 x 7.1 x 14.6 inch
- Notes
-

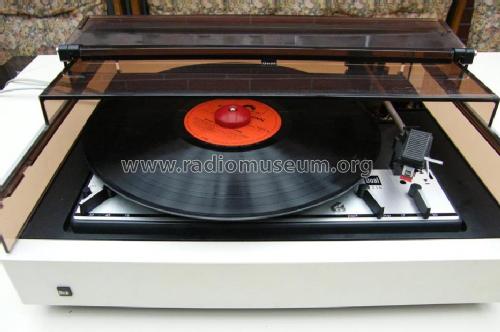

Dual CS 22

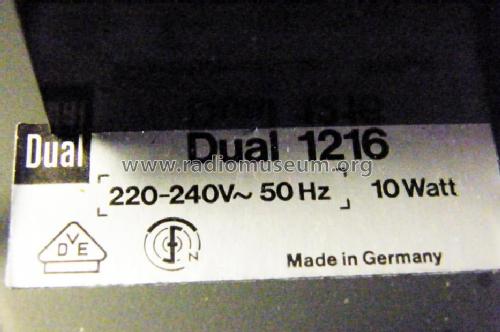

Anschlußfertige HiFi Componente mit HiFi Automatikspieler Dual 1216,

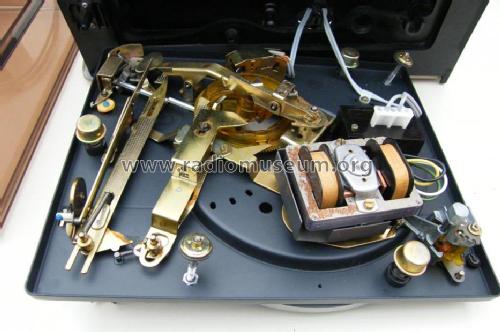

Konsole CK 16 und Abdeckhaube CH 21 (Klapp-Schiebehaube).Phono-Chassis = Dual_1216, mit Stereo-Magnetsystem Dual DMS200
und Plattenteller 270mm, 2,1Kg
Gehäuse: Schleiflack, weiß - auch als CS22 in Nußbaum, natur
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Price in first year of sale
- 420.00 DM
- Source of data
- Handbuch VDRG 1973/1974
- Mentioned in
- -- Original prospect or advert (Dual Programm 1973/74)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
