- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1985
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 124259
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 115/230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: CS5000 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 129 x 380 mm / 17.3 x 5.1 x 15 inch
- Notes
-

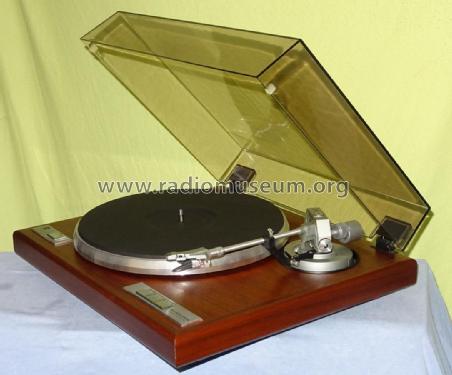

Dual 3-Speed Semi-Automatic Belt driven Turntable Model CS 5000.
Ausführungen:
Holzkonsole mit Holzfurnier in nußbaum und schwarz.Halbautomatischer Plattenspieler mit Riemenantrieb, Autostop, Quartzregelung und einstellbarem Floating-Chassis. Tonarmkopf aus Carbon-Fiber.
Tonabnehmersystem: Ortofon OMB 20 E mit elliptischer Nadel.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Mentioned in
- Funkschau (25/1985, S.45 f.)
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Werner Ehehalt. See "Data change" for further contributors.
