- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1977/1978
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 124202
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org

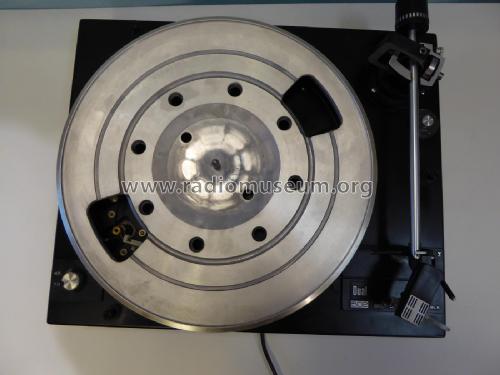

- Model: CS502-1S - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 148 x 365 mm / 16.5 x 5.8 x 14.4 inch
- Notes
- Halbautomatischer HiFi-Plattenspieler mit Flachriemenantrieb in schwarzer Flachkonsole. 33/45 UpM, Anti-Skating, Pitch-Control.

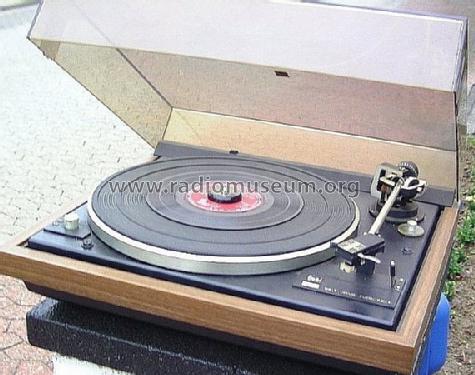

Siehe auch CS502 in nussbaumfarbener Kompakt-Konsole.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Source of data
- Handbuch VDRG 1977/1978
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
