• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 117004

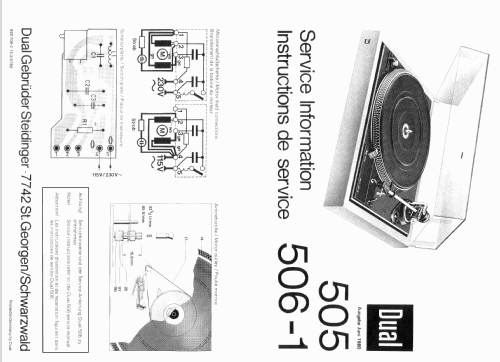

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Semi-Automatic Belt-Drive Turntable CS505 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 140 x 368 mm / 16.5 x 5.5 x 14.5 inch

• Notes

• Dual 2-Speed Semi-Automatic Belt driven Turntable Model CS 505.
  Drive: Dual 16-pole SM 100-1 synchronous motor with precision flat belt for flywheel drive Starting time: 2 to 2.5 s
  Platter: 304 mm, 1,1 kg, non-magnetic, removable
  Speeds: 33.33 and 45 rpm
  Pitch control: 6 %
  Wow and flutter: 0.05 % WRMS
  Rumble: 69 dB
  Tonearm: distortion free ultra low mass aluminium tubular tonearm in 4 point tip bearing
  Finish: Satin-metallic

• Source of data
• - - Data from my own collection

• Mentioned in

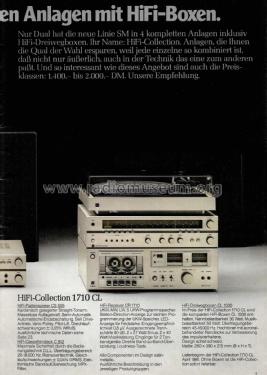

• -- Original prospect or advert (Dual Catalogue 1981)

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
