• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111385

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

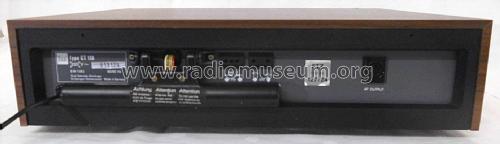

• Model: CT110 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 108 x 350 mm / 16.5 x 4.3 x 13.8 inch

• Notes
• ICs: 3.
  Nußbaumfarbene Konsole. Siehe auch CT110W mit weißer Konsole.

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Handbuch VDRG 1976/1977

• Author
• Model page created by Wolfgang Winkler. See "Data change" for further contributors.
