- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1978 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155514

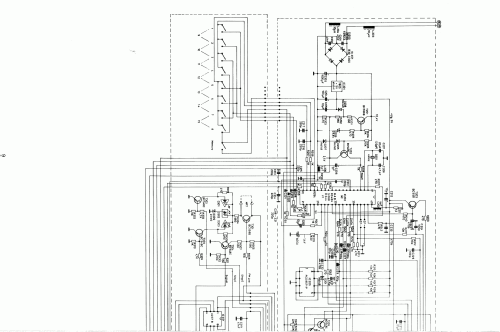

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CT1460 - Dual, Gebr. Steidinger; St.
- Shape
- Rack
- Dimensions (WHD)
- 440 x 65 x 270 mm / 17.3 x 2.6 x 10.6 inch
- Notes
- Synthesizer Tuner (12,5 khz-Steps) FM-Koax Eingang 75 Ohm, NF-Ausgang über Kabel mit Chinchstecker, 15 Programme mit Fixtasten speicherbar, Feldstärke und Tuning Anzeige über LED-Zeilen, Ratio-Mittenabstimmung (3 x LED), Netzstromaufnahme 15 Watt.
- Net weight (2.2 lb = 1 kg)
- 2.920 kg / 6 lb 6.9 oz (6.432 lb)
- Price in first year of sale
- 695.00 DM
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
