- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1977/1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124242
Bild ebay Verkäufer: 7674gertjan

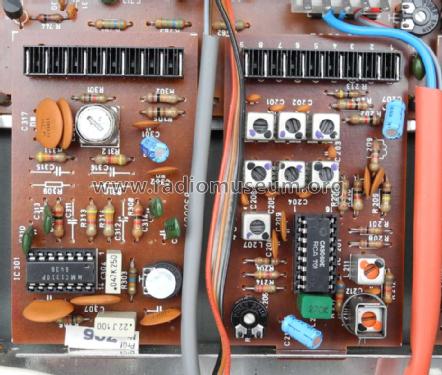

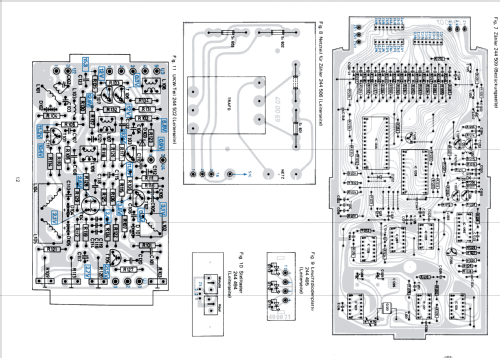

UKW-Eingangsteil mit erstem ZF-Filter
FM-ZF-Verstärker und Stereo-Decoder.
-

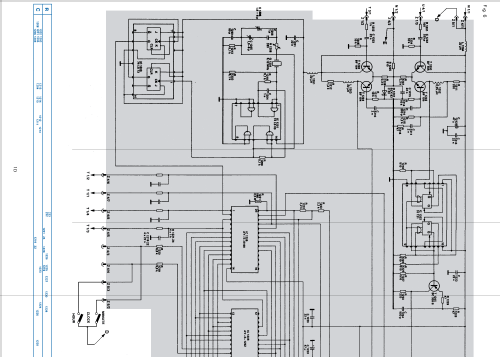

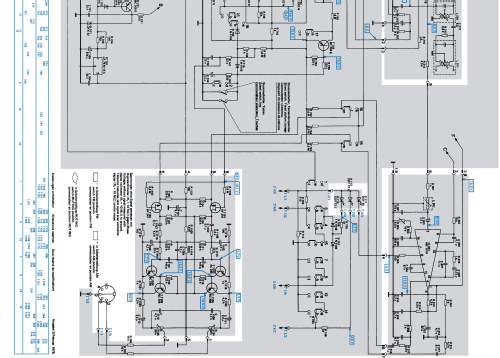

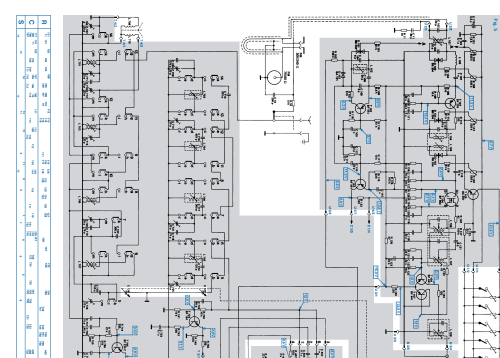

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 16 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: CT1640 - Dual, Gebr. Steidinger; St.

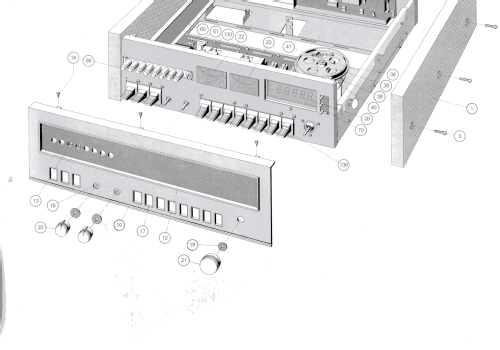

- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 438 x 145 x 370 mm / 17.2 x 5.7 x 14.6 inch
- Notes
-
ICs: 16.
HiFi-Stereo-Tuner mit Digital-Anzeige. Konsole anthrazit, Frontblende metallic. Siehe auch CT1649MB mit Frontblende metallic-braun.FM coverage 88 to 104 MHz
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Source of data
- Handbuch VDRG 1977/1978
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
