• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1984 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 127325

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

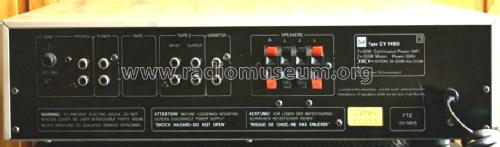

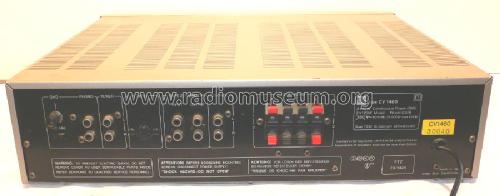

• Model: CV1460 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 110 x 390 mm / 17.3 x 4.3 x 15.4 inch

• Notes

• Stereo-Verstärker. Eingänge: Phono, Tuner, Aux, 2× Tape. Vier Lautsprecherausgänge. Zwei Leistungsanzeigen. Sinusleistung: 2× 95 W an 8 Ohm, dabei Klirrfaktor < 0,1 %.
  Hersteller: Firma Denon, Japan.

  ( Stereo amplifier. Inputs: Phono, Tuner, Aux, 2 × Tape. Four speaker outputs. Two performance indicators. Sine power: 2 × 95 W at 8 ohms, with harmonic distortion <0.1%.
  Manufacturer: Denon, Japan. )



• Net weight (2.2 lb = 1 kg)
• 11.8 kg / 25 lb 15.9 oz (25.991 lb)

• Price in first year of sale
• 695.00 DM

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
