Einbauverstärker V 12
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1963 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 313599
- Number of Transistors
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Other, details in remarks or not known. / AC ? V Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Einbauverstärker V 12 - Dual, Gebr. Steidinger; St.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 68 x 51 x 205 mm / 2.7 x 2 x 8.1 inch
- Notes
-

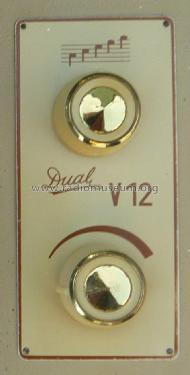

Die Frontplatte misst 56mm x 121mm.
Der Verstärker V 12 ist mit einem 1008A Plattenwechsler-Chassis in einer gemeinsamen Grundplatte verbaut.
Die Versorgungsspannung erhält der Verstärker über die Statorwicklung des Plattenspielermotors.
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
