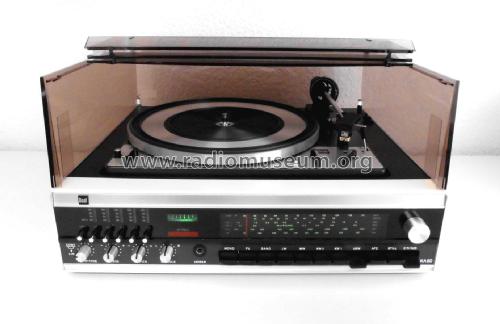

HiFi-Stereo-Kompaktanlage KA50W
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1971–1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28384
- Number of Transistors
- 31
- Semiconductors
- BF125 BF195 BF245 BF194 BC173 BC309 BC108 BC253 BC252 BC171 2N2218 2N2904 BD207 BB104 BA124 1N60 AA119 AA132 ZE2 BZY85 B40C2200 B30C300
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 18 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (60 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi-Stereo-Kompaktanlage KA50W - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 420 x 225 x 377 mm / 16.5 x 8.9 x 14.8 inch
- Notes
-
Dual HiFi Kompaktanlage KA 50 W
Vollstereo, NF-Verstärker mit zwei Endstufen je 20 Watt (Sinus) bzw 30 Watt (Musiklleistung), Rundfunkempfänger mit 5 Empfangsbereichen, FM-Empfindlichkeit < 1,5 µV für 26 dB Rauschabstand (Mono), 5 Stationstasten (FM)
Phono-Chassis Dual_1218 jedoch mit Magnetsystem Shure M 75Type D.
Abdeckhaube (Klapphaube) CH 20 im Lieferumfang
Gehäuse: Schleiflack, weiß, siehe auch KA50 in Nußbaum
Jeder Halbleiter-Typ nur einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 12.9 kg / 28 lb 6.6 oz (28.414 lb)
- Price in first year of sale
- 1,310.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- -- Original prospect or advert (Dual Programm 1971/72 und 1972/73)
