• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1974–1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 117549

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: HS130 Ch= Dual 1224 + TV377 [mit Transistor-Verstärker] - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 357 x 180 x 325 mm / 14.1 x 7.1 x 12.8 inch

• Notes

• Phono-Chassis = Dual 1224 mit Keramiksystem CDS650;

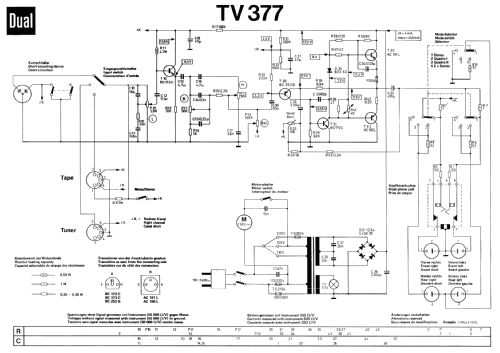

  Stereo-NF-Verstärker TV377 Ausgabe 1 mit zwei Endstufen je 6 W;
  Zwei Lautsprecherboxen (300×195×105 mm, 1,8 kg) im Lieferumfang.
  Vier Lautsprecher-Anschlüsse, DIN-Buchsen für Band/Tape und Tuner.

  Gehäuse in Nussbaum natur, in Schleiflack weiss siehe Type HS130W. Abmessungen inkl. Abdeckhaube H14.

  Siehe auch HS130 mit IC-Verstärker.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Source of data
• Handbuch VDRG 1974/1975

• Mentioned in
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)
• -- Original-techn. papers.
