• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1972/1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 111047

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC173 BC173 BC172 BC172 BC108 BC108 AC180 AC181 AC180 AC181 BZX62 BZX62

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: HS26 Ch= TV72 A - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 304 x 143 x 252 mm / 12 x 5.6 x 9.9 inch

• Notes
• Phono-Chassis = 420 mit Keramiksystem CDS650;
  Stereo-NF-Verstärker mit 2 Endstufen je 6 W, 2 Lautsprecherboxen (195×300×130 mm, 1,5 kg) im Lieferumfang.
  Gehäuse: Nußbaum, natur; siehe auch HS26W in Schleiflack, weiß.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 398.00 DM

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in

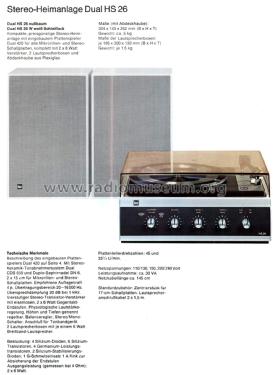

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wolfgang Winkler. See "Data change" for further contributors.
