- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1971/1972
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 111298

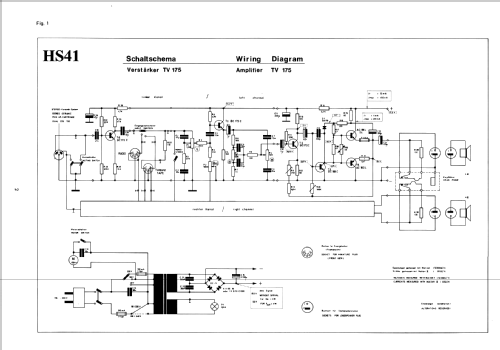

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- BC173 BC173 BC172 BC108 AC180 AC181 BC173 BC173 BC172 BC108 AC180 AC181 BA170 BA170 SE30 SE30 SE30 SE30 or. B30C1000
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8 W (12 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HS41 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 204 x 377 mm / 16.5 x 8 x 14.8 inch
- Notes
-

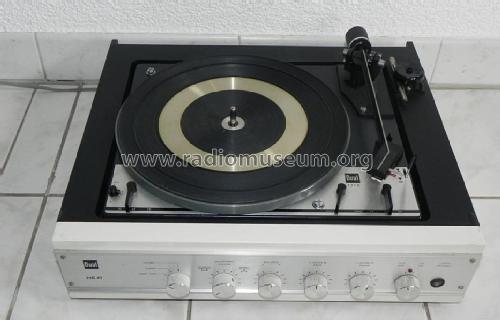

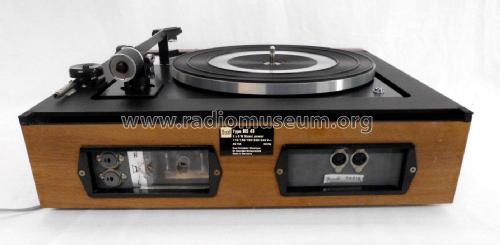

Stereo-Heimanlage Dual HS 41
Phono-Chassis = HIFi-Automatikwechsler Dual_1215 Geschwindikeit: 33 1/3; 45; 78 UpM; HiFi-Keramiksystem Dual CDS 700; Transistorverstärker TV175, NF-Ausgangsleistung 2 × 4 Watt Dauerleistung, 2 x 6 Watt Musikleistung; Lieferung komplett mit Abdeckhaube CH5 und zwei angepassten Lautsprecherboxen.
Lautsprecherboxen mit je einem 200mm Breitband-Duolautsprecher (Wigo), 10 Watt Musikbelastbarkeit, Übertragungsbereich 60 - 18.000Hz, Maße 363 x 230 x 162mm.
Gehäuse-Ausführung von Konsole und LS-Boxen: Nussbaum oder Schleiflack-Weiß.
- Net weight (2.2 lb = 1 kg)
- 11.6 kg / 25 lb 8.8 oz (25.551 lb)
- Price in first year of sale
- 786.00 DM
- Source of data
- Handbuch VDRG 1971/1972
- Mentioned in
- -- Original-techn. papers. (Dual Programm 1971/72 und Preislisten 04/1971 und 04/1972, Serviceanleitung 09/1971)
- Author
- Model page created by Wolfgang Winkler. See "Data change" for further contributors.
