- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1973/1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 111300
Q: Dual, Produkt-Katalog '73
Q: Dual, Produkt-Katalog '73
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (30 W max.)
- Material
- Wooden case
- from Radiomuseum.org

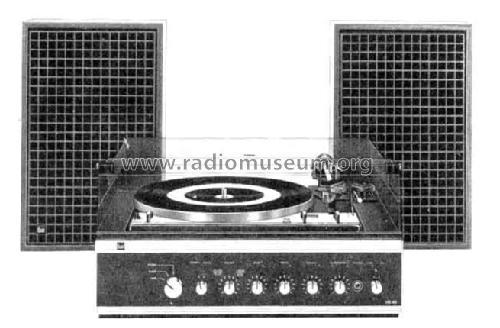

- Model: HS43 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 210 x 385 mm / 16.5 x 8.3 x 15.2 inch
- Notes
-
Verstärker-Modul = TV224; NF-Ausgangsleistung 2× 10 Watt sinus; Quadroeffekt; 2 Lautsprecherboxen (230×363×110 mm, 3 kg) im Lieferumfang.
Phono-Chassis = Dual 1216 mit Magnetsystem DMS200.
Gehäuse: Nußbaum, natur; siehe auch HS43W in Schleiflack, weiß.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 898.00 DM
- Source of data
- Handbuch VDRG 1973/1974
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Winkler. See "Data change" for further contributors.
