• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1990 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 222754

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

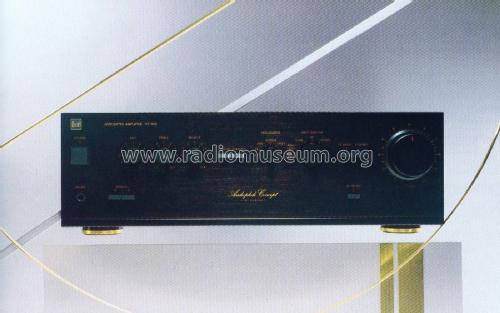

• Model: Integrated Amplifier CV5670 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 142 x 303 mm / 17.3 x 5.6 x 11.9 inch

• Notes

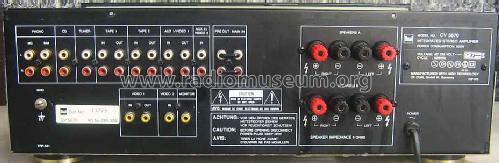

• Integrated Amplifier CV5670, Ausgangsleistung 2 x 100 Watt Sinus an 8 Ohm und 2 x 170 Watt Musikleistung an 4 Ohm, Eingänge : CD/Video/Tape/Phono, Außgänge für zwei Lautsprecherpaare Monitor und Kopfhörerbuchse, Leistungsaufnahme 500 Watt.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
