- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1975–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111380

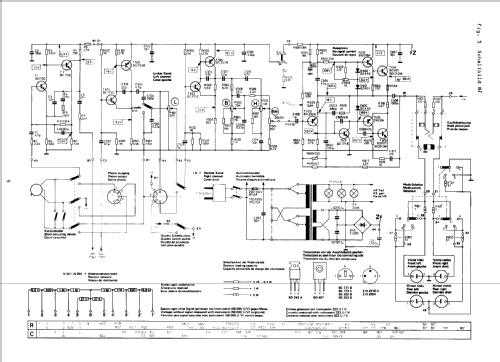

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 37
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 117; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

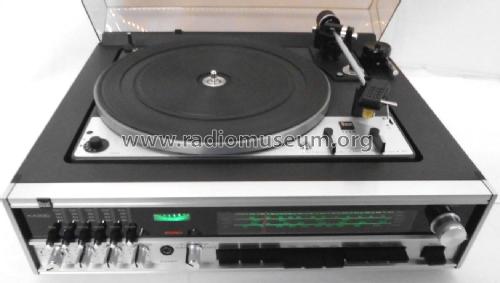

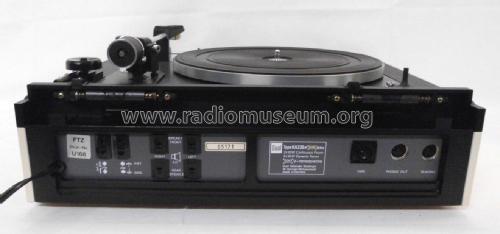

- Model: KA230 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 180 x 385 mm / 16.5 x 7.1 x 15.2 inch
- Notes
-
3 ICs. HiFi-Stereo-Kompakt-Anlage. NF-Ausgangsleistung 2× 20 Watt (Sinus), Quadroeffekt; Phono-Chassis = Dual 1226, Geschwindigkeiten: 33/45 UpM, Magnetsystem Shure M75. 5 UKW-Stationstasten, 2x 30W Musik, 4 Lautsprecherausgänge für Quadroeffect-Wiedergabe. Ausführungen: KA230 nussbaumfarbene Konsole, ohne Lautsprecherboxen; KA230W weisse Konsole ohne Lautsprecherboxen; KA230-2L nussbaumfarbene Konsole mit 2 LS-Boxen Dual CL240; KA230-2LW weisse Konsole mit 2 LS-Boxen Dual CL240W. Ein Gerät auch für die Planet UE Handelsgruppe in 1977.
- Price in first year of sale
- 1,148.00 DM
- Source of data
- Handbuch VDRG 1977/1978
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Funk-Technik (FT) (21/1975, S. 692, 693 / Werbeanzeige)
- Author
- Model page created by Wolfgang Winkler. See "Data change" for further contributors.
