P-1010AV52

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Year
1966/1967

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
113183

Schematics

P-1010AV52; Dual, Gebr. (ID = 3044689) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 3044691) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 3044690) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2246038) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2246037) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2245226) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2245227) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2246039) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2246040) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2245228) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 1340298) R-Player — Dual, Gebr. P-1010AV52 (2)

P-1010AV52; Dual, Gebr. (ID = 1340299) R-Player — Dual, Gebr. P-1010AV52 (2)

P-1010AV52; Dual, Gebr. (ID = 333229) R-Player — Dual, Gebr. P-1010AV52 (2)

P-1010AV52; Dual, Gebr. (ID = 2177271) R-Player — Dual, Gebr. P-1010AV52 (2)
Q: Dual, Service-Unterlagen 9.66

P-1010AV52; Dual, Gebr. (ID = 2177272) R-Player — Dual, Gebr. P-1010AV52 (2)
Q: Dual, Service-Unterlagen 9.66

P-1010AV52; Dual, Gebr. (ID = 2177273) R-Player — Dual, Gebr. P-1010AV52 (2)
Q: Dual, Service-Unterlagen 9.66

P-1010AV52; Dual, Gebr. (ID = 2246324) R-Player — Dual, Gebr. P-1010AV52 (1)

P-1010AV52; Dual, Gebr. (ID = 2249678) R-Player — Dual, Gebr. P-1010AV52 (1)

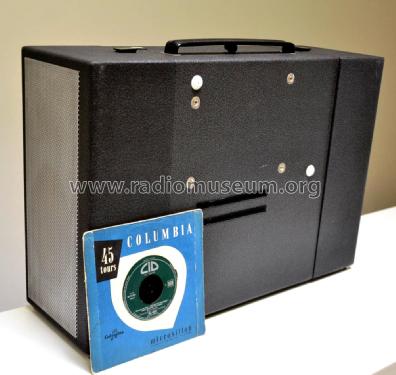

P-1010AV52; Dual, Gebr. (ID = 2249684) R-Player — Dual, Gebr. P-1010AV52 (1)

Technical Specifications

Number of Transistors
10

Semiconductors
BC109 BC109 BC108 BC108 BC108 BC108 AC153 AC153 AC176 AC176

Main principle
Audio-Amplification

Wave bands
- without

Details
Rec.Player+Audio.Amp+LS

Power type and voltage
Alternating Current supply (AC) / 110; 150; 220 Volt

Loudspeaker
2 Loudspeakers

Power out
8 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: P-1010AV52 - Dual, Gebr. Steidinger; St.

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
555 x 185 x 38 mm / 21.9 x 7.3 x 1.5 inch

Notes
Phono-Chassis = 1010A. Stereo-NF-Verstärker mit 2 Endstufen je 4 W. 2 Lautsprecherboxen mit je 1 LS.

Net weight (2.2 lb = 1 kg)
12.1 kg / 26 lb 10.4 oz (26.652 lb)

Price in first year of sale
476.00 DM

Source of data
Handbuch VDRG 1966/1967

Author
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
