P300AV/1

Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Year
1962 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
92701

Schematics

P300AV/1; Dual, Gebr. (ID = 273271) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 2069759) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 2069760) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 2069762) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 2069763) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 2069764) R-Player — Dual, Gebr. P300AV/1 (3)

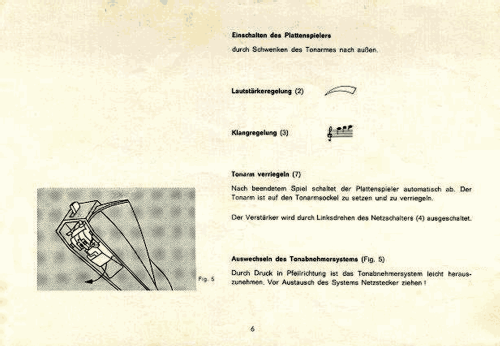

P300AV/1; Dual, Gebr. (ID = 2069765) R-Player — Dual, Gebr. P300AV/1 (3)

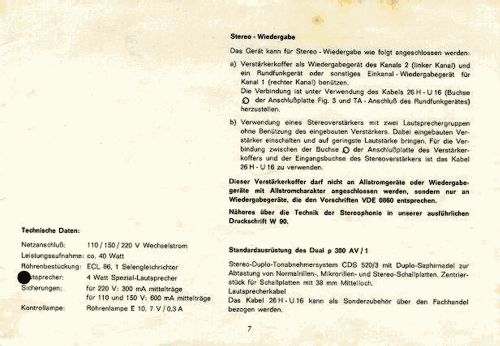

P300AV/1; Dual, Gebr. (ID = 2069766) R-Player — Dual, Gebr. P300AV/1 (3)

P300AV/1; Dual, Gebr. (ID = 367193) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 189789) R-Player — Dual, Gebr. P300AV/1 (2)

P300AV/1; Dual, Gebr. (ID = 278333) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 278334) R-Player — Dual, Gebr. P300AV/1 (1)

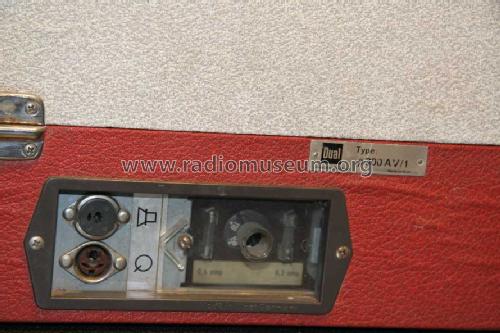

P300AV/1; Dual, Gebr. (ID = 278336) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 278337) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 278338) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 278339) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 456411) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 456412) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 456413) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 580216) R-Player — Dual, Gebr. P300AV/1 (2)
Original Serviceunterlage

P300AV/1; Dual, Gebr. (ID = 580220) R-Player — Dual, Gebr. P300AV/1 (2)
Original Serviceunterlage

P300AV/1; Dual, Gebr. (ID = 615208) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 615209) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 615210) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 615212) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 777188) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 777189) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 777190) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 777192) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 1656001) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 1656002) R-Player — Dual, Gebr. P300AV/1 (1)

P300AV/1; Dual, Gebr. (ID = 1795869) R-Player — Dual, Gebr. P300AV/1 (2)
Ebay auction by user user44 291385185830

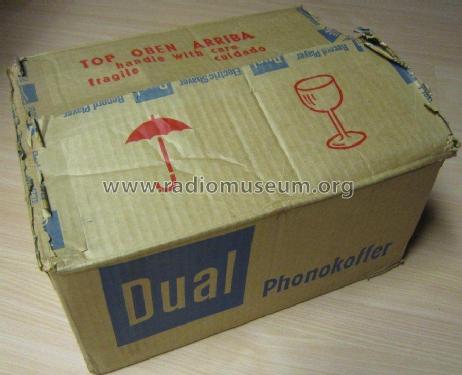

P300AV/1; Dual, Gebr. (ID = 1795870) R-Player — Dual, Gebr. P300AV/1 (2)
Ebay auction by user user44 291385185830

P300AV/1; Dual, Gebr. (ID = 2191947) R-Player — Dual, Gebr. P300AV/1 (2)
Q: Dual, Prospekt '63

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
1

Valves / Tubes
ECL86

Main principle
Audio-Amplification

Wave bands
- without

Details
Rec.Player+Audio.Amp+LS

Power type and voltage
Alternating Current supply (AC) / 110, 150, 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: P300AV/1 - Dual, Gebr. Steidinger; St.

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
340 x 170 x 270 mm / 13.4 x 6.7 x 10.6 inch

Notes
Plattenspieler-Verstärkerkoffer; Chassis = 300A

Kristall-Tonabnehmer-System CDS 520/3 mit Duplo-Saphir-Nadel DN 3.

Net weight (2.2 lb = 1 kg)
5 kg / 11 lb 0.2 oz (11.013 lb)

Source of data
-- Original-techn. papers.

Author
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
