• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1966/1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 117101

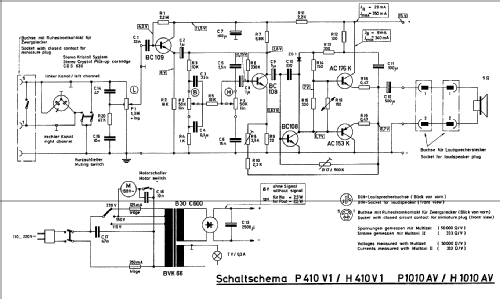

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC109 BC108 BC108 AC153 AC176

• Main principle
• Audio-Amplification; 4 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

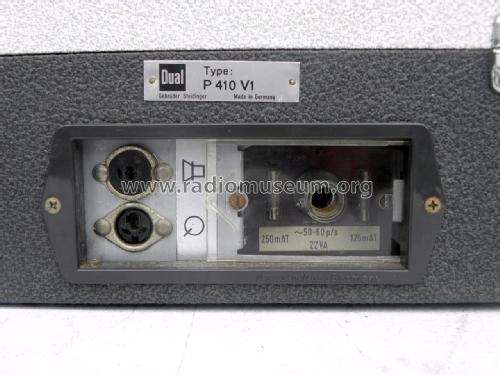

• Model: P410V1 - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 168 x 275 mm / 13.4 x 6.6 x 10.8 inch

• Notes
• Phono-Chassis = 410.

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Price in first year of sale
• 248.00 DM

• Source of data
• Handbuch VDRG 1966/1967

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
