- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1979–1982
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 134982
Q: Dual, Service-Unterlagen
Original prospekt.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage

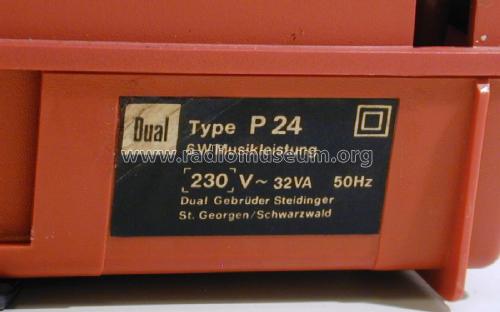

- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 6 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P 24 - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 125 x 265 mm / 13.8 x 4.9 x 10.4 inch
- Notes
-
Dual P24

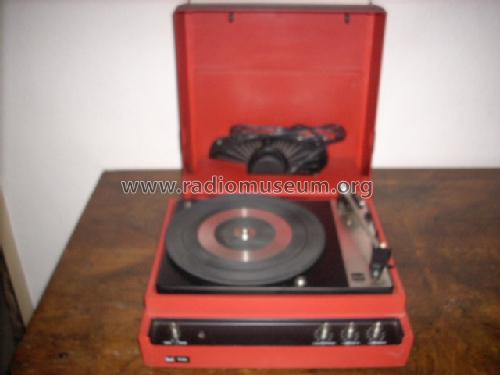

Kofferplattenspieler mit Lautsprecher im abnehmbaren Deckel. Eingebauter Verstärker mit getrennter Klangregelung und 6 Watt Musikleistung. Kunststoffgehäuse in korallenrot.
Phono-Chassis: 430, Pick-up: CDS 660.
- Net weight (2.2 lb = 1 kg)
- 5.1 kg / 11 lb 3.7 oz (11.233 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- -- Original prospect or advert (Dual Programm 1979/80 bis 1981/82)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
- Other Models
-
Here you find 884 models, 844 with images and 476 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Dual, Gebr.: P 24
Threads: 1 | Posts: 2
Das Gerät ist bestückt mit einem Transistor BC 237 B und einem I.C. TBA 810 SP .
Norbert Haselbach, 14.Oct.08
