• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1959–1961

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 21622

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EF86 EL95

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

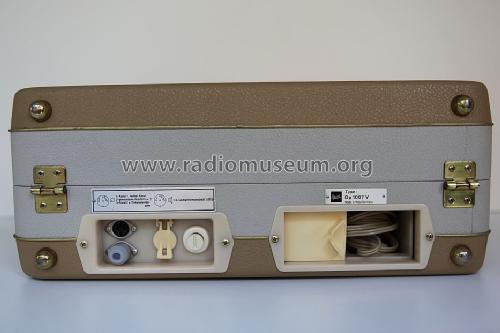

• Model: Party 1007V - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 170 x 340 mm / 16.9 x 6.7 x 13.4 inch

• Notes
• Phono-Chassis = 1007.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 298.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb
