• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1979/1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 135002

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• BC413 TBA810

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

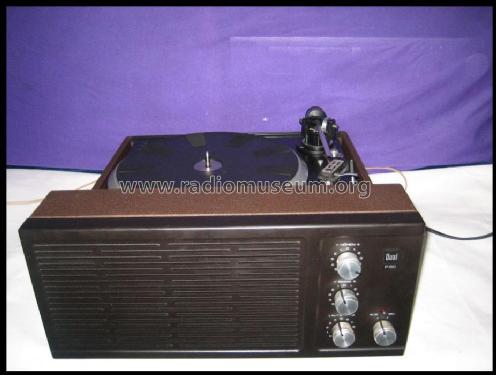

• Model: Phono-Portable P80 - Dual, Gebr. Steidinger; St.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 373 x 160 x 425 mm / 14.7 x 6.3 x 16.7 inch

• Notes
• Turntable: Dual 1234, Pick-up: CDS 660.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
