275

• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1954–1956

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 19772

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: 275 - Dual, Gebr. Steidinger; St.

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 327 x 264 x 112 mm / 12.9 x 10.4 x 4.4 inch

• Notes

• Drehzahlen des Plattentellers: 33/45/78 UpM;
  Dual-Hochleistungs-Kristall-System CDS 2 mit Doppel-Saphirnadel DN 2;
  Übertragungsbereich: 20-20000 Hz.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 88.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

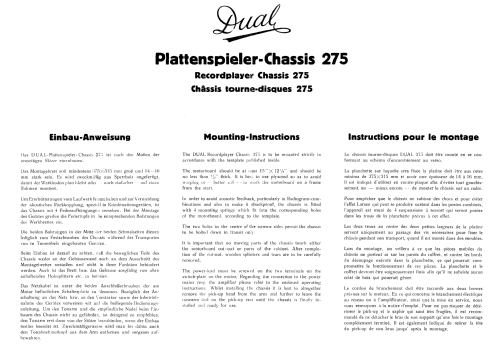

• -- Original-techn. papers. (Service-Manual 4.55)
