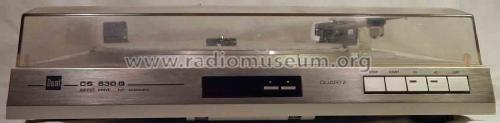

Plattenspieler CS630Q
Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1982 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 145246
Display_276037
Steuerplatte_276035

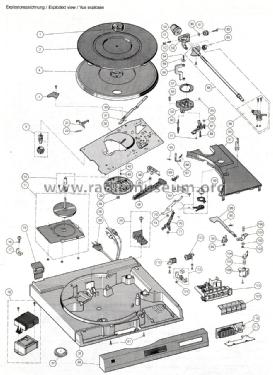

Q: Dual, Service-Unterlagen 03.84
Q: Dual, Service-Unterlagen 03.84
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer); Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 115 / 230 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Plattenspieler CS630Q - Dual, Gebr. Steidinger; St.
- Shape
- Tablemodel, low profile (big size).
- Notes
- Gehäuse aus Kunststoff, Plattenteller nichtmagnetisch, abnehmbar. Prozessorgesteuerter Quarz PLL Direktantrieb, 33 1/3 und 45 U/min. Alurohrtonarm in kardanischer Vierpunkt Spitzenlagerung . Die Originalbestückung war das System Dual ULM 66 E mit Nadel DN 166 E. Das System wurde von Ortofon speziell für Dual gefertigt.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Bernd Hakenjos. See "Data change" for further contributors.
