• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1983 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 185858

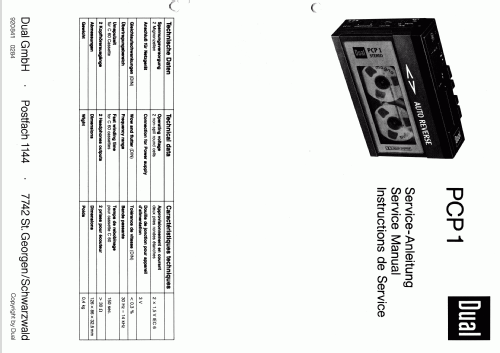

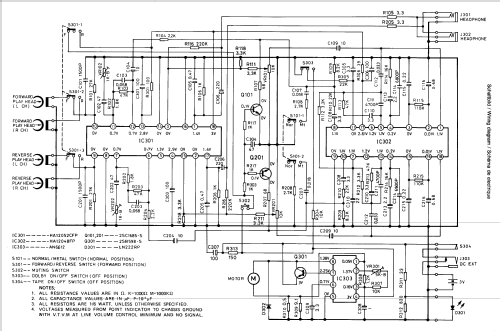

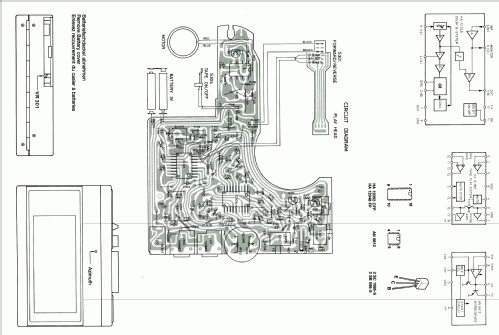

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Portable Cassette Player PCP1 - Dual, Gebr. Steidinger; St.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 126 x 86 x 32 mm / 5 x 3.4 x 1.3 inch

• Notes
• Walkman: Autoreverse, 2 Kopfhöreranschlüsse, Reineisentechnik, Dolby B NR. Ausführung anthrazit-metallic. Übertragungsbereich 30 Hz - 14kHz, Gleichlaufschwankung > 0,3 %

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Felix Kreitlow. See "Data change" for further contributors.
