• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1990 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 280271

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / Siehe Anmerkung Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated Amplifier CV 5650 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 122 x 303 mm / 17.3 x 4.8 x 11.9 inch

• Notes

• Dual Stereo Integrated Amplifier Model CV 5650.
  Power output: 60 Watts per channel into 8Ω (stereo)
  Frequency response: 10 -  70000Hz
  Total harmonic distortion: 0.01%
  Input sensitivity: 2.5mV (MM), 200mV (line)
  Signal to noise ratio: 75dB (MM), 98dB (line)
  Speaker load impedance: 8Ω to 16Ω
  Inputs: CD, Video, Tape, Phono
  Power Consumption 300 Watts
  Power Requirements:
  European Model - 220VAC, 50Hz
  US/Canadian Model - 120VAC, 60Hz
  UK Model - 240VAC/50Hz

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Mentioned in
• - - Manufacturers Literature (Service Manual)

• Literature/Schematics (1)

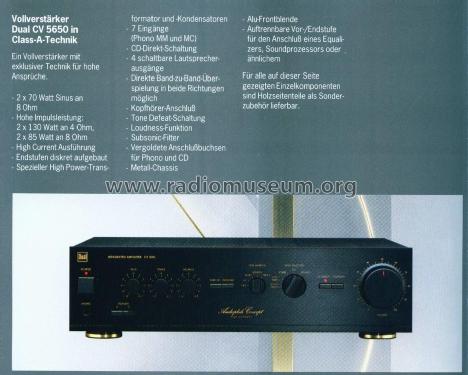

• Dual Catalogue 1991

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
