- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1983
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 183066

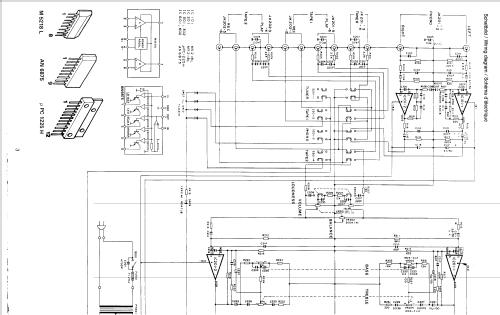

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: CV-3510 - Dual, Gebr. Steidinger; St.
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 350 x 64 x 360 mm / 13.8 x 2.5 x 14.2 inch
- Notes

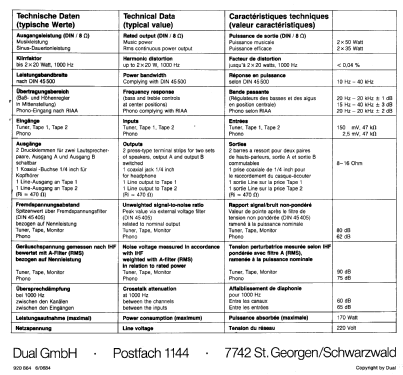

- Ausführung satin-metallic, Ausgangsleistung 2 x 35W/50W, Bandbreite 10 Hz-40 kHz, Eingänge 1 x Tuner, 1 x Phono, 2 x Tape, Anschlüsse für 4 Lautsprecher 8-16 Ohm, Hergestellt in Japan unter Duallizenz
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Felix Kreitlow. See "Data change" for further contributors.
