UKW/MW-Radio Dual NR2
Dual, DGC GmbH; Landsberg am Lech
- Country
- Germany
- Manufacturer / Brand
- Dual, DGC GmbH; Landsberg am Lech
- Year
- 2012 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 272472
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: UKW/MW-Radio Dual NR2 - Dual, DGC GmbH; Landsberg am
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 220 x 125 x 120 mm / 8.7 x 4.9 x 4.7 inch
- Notes
-

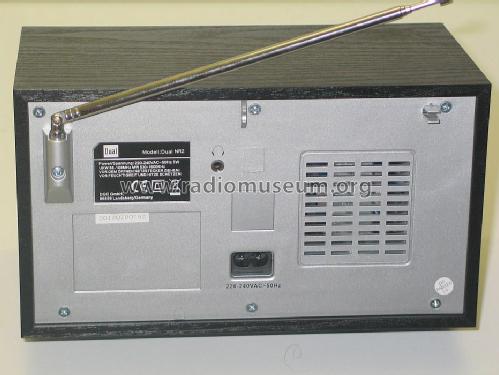

Teleskopantenne für UKW. Grüne LED als Abstimmhilfe. Kopfhörerbuchse auf der Rückseite. Kein Netzschalter!
Das Gerät ist eines der zahlreichen Design-Clone verschiedener Hersteller des Henry Kloss Model One.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by Otto Frosinn. See "Data change" for further contributors.
