Präzisions-Drehkondensator EC 1000.14
Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Country
- Italy
- Manufacturer / Brand
- Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Year
- 1945 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 273212
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Präzisions-Drehkondensator EC 1000.14 - Ducati, SSR Società
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 94 x 100 x 144 mm / 3.7 x 3.9 x 5.7 inch
- Notes
-

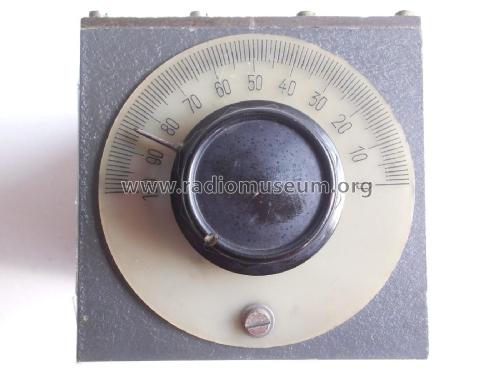

Modell: Präzisions-Drehkondensator EC 1000.14; Ducati, SSR, Bologna, Italien.
180 Grad-Drehwinkel; Skala 0 bis 100 für Kapazitätsbereich 55 bis 1225 pF.
Stator und Rotor aus Al-Blechlamellen zusammengefügt. Isolierung durch Kunststoff-Bodenplatte.
- Author
- Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
