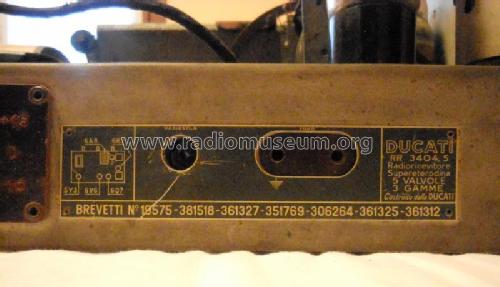

RR3404.5 Senza scritta Ducati
Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Country
- Italy
- Manufacturer / Brand
- Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Year
- 1941 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241879
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RR3404.5 [Senza scritta Ducati] - Ducati, SSR Società
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 440 x 320 x 330 mm / 17.3 x 12.6 x 13 inch
- Notes
-
È un modello - senza marchio sul mobile - destinato ai dipendenti, ha il trasformatore di alimentazione leggermente più piccolo, l'impiallacciatura in legno diverso.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Osvaldo Forlani. See "Data change" for further contributors.
