• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80441

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6B8G 6V6G 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125, 160, 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

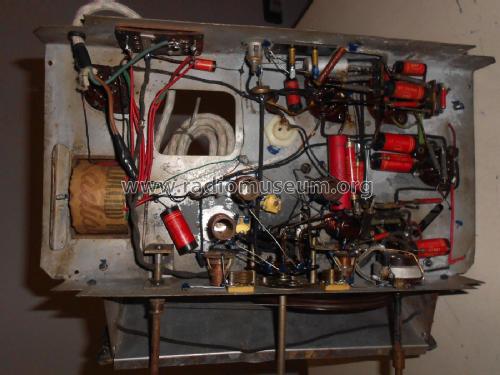

• Model: RR3405 - Ducati, SSR Società

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 700 x 750 x 340 mm / 27.6 x 29.5 x 13.4 inch

• Notes
• Radiofonografo.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• Il Radio Libro, (Ravalico) 8.Ed. (.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
