• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128188

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 EM4 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

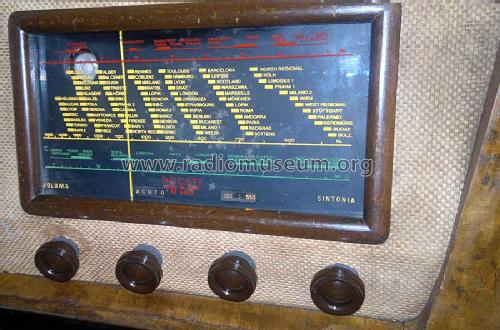

• Model: RR3423.1 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 340 x 335 mm / 25.2 x 13.4 x 13.2 inch

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Paolo Goattin. See "Data change" for further contributors.
