- Country
- Italy
- Manufacturer / Brand
- Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 106068
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-275 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RR3703 - Ducati, SSR Società
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 740 x 390 x 340 mm / 29.1 x 15.4 x 13.4 inch
- Source of data
- Guida Pratica Antique Radio II (2000)
- Literature/Schematics (1)

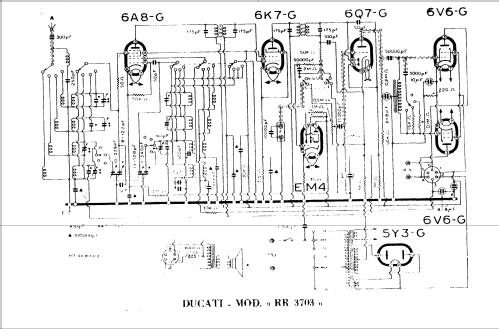

- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
