• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117293

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6V6 6E5 6X5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 30 cm = 11.8 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

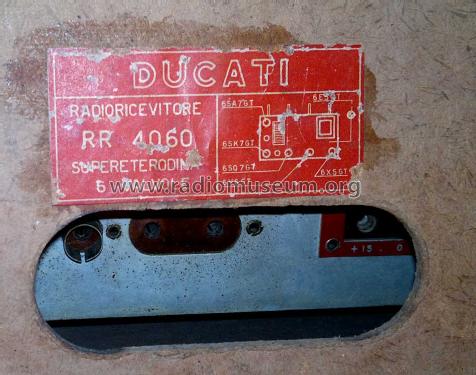

• Model: RR4060 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 710 x 370 x 260 mm / 28 x 14.6 x 10.2 inch

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
