• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106069

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details

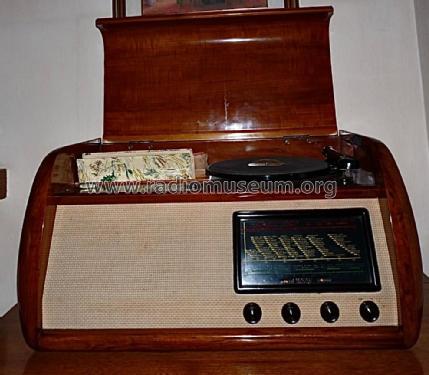

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

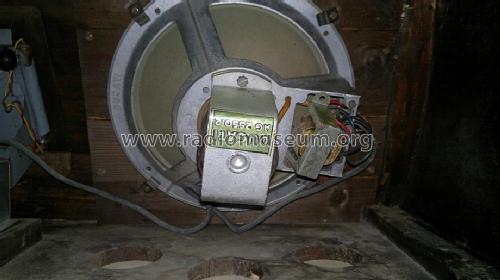

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RR4111 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 810 x 400 x 410 mm / 31.9 x 15.7 x 16.1 inch

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)

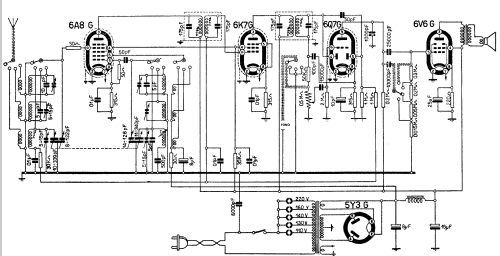

• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
