• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88679

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 50L6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

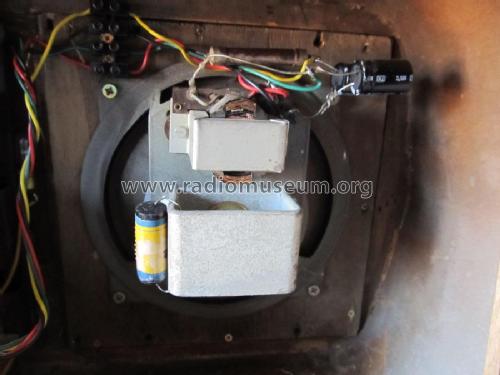

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.4 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RR4151 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Notes

• Onde Medie divise in 2 gamme. 2 gamme di onde Corte da 52 a 37 metri e da 40 a 16,5 metri

• Mentioned in
• Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 33)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra

• Literature/Schematics (2)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
