• Country
• Italy

• Manufacturer / Brand
• Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna

• Year
• 1940–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113792

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6V6G 6E5GT 5Y3G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

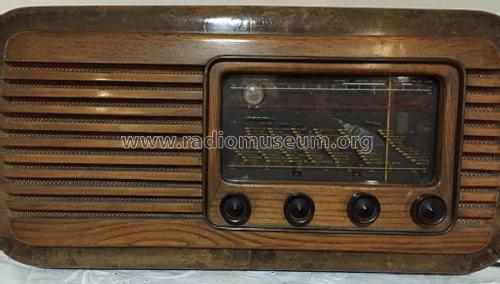

• Model: RR4961 - Ducati, SSR Società

• Shape
• Tablemodel, low profile (big size).

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
