Sconosciuto (Unknown)
Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Country
- Italy
- Manufacturer / Brand
- Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 234373
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 462 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 16 cm = 6.3 inch
- Power out
- 1.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sconosciuto - Ducati, SSR Società
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 220 x 210 mm / 16.5 x 8.7 x 8.3 inch
- Notes
-
Molto simile al modello RF2055 ma senza Giradischi, e al mod. RR2050 che però ha un frontale leggermente differente (radica in 2 tonalità differenti)
- Author
- Model page created by Lorenzo Guadagnucci. See "Data change" for further contributors.
- Other Models
-
Here you find 102 models, 83 with images and 74 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
Forum contributions about this model: Ducati, SSR Società: Sconosciuto
Threads: 1 | Posts: 1
Salve, qualcuno conosce il modello di questa ducati? Assomiglia tantissimo al modello RF2055 ma senza il Giradischi. Forse si tratta del modello RR2055.... Grazie

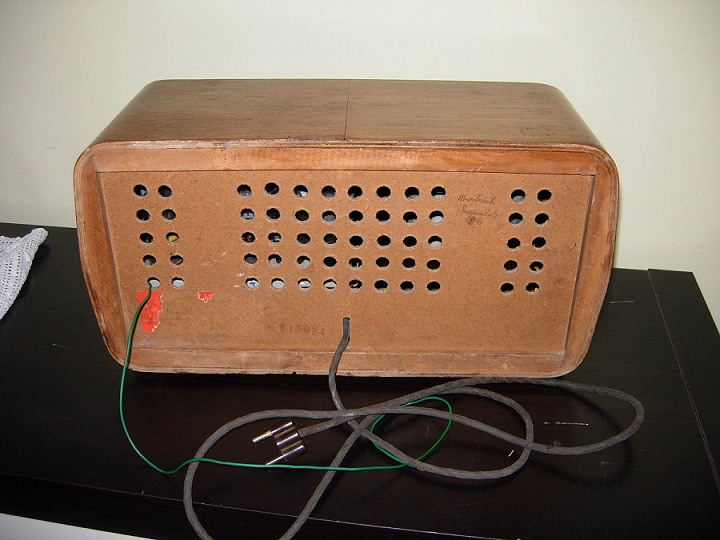

Attachments
Lorenzo Guadagnucci, 29.Apr.13
