Sirius W367E
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1957/1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 288391
-
- alternative name: Dumont Television & Radio
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 120-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sirius W367E - DuMont Labs, Allen B., Inc.
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 560 x 300 x 370 mm / 22 x 11.8 x 14.6 inch
- Notes
-
DuMont branded radio, built in Germany by Tonfunk.
Integrated Perpetuum Ebner record player, orientable ferrite antenna for MW and LW. Connection for tape recorder. Three speakers: 1 elliptical 18 x 12 cm and 2 tweeters each with 7 cm diameter.
See the similar domestic Tonfunk W367E, for a near matching schematic see model Tonperle 58.
Made in Germany.
- Author
- Model page created by Fabio Masetti. See "Data change" for further contributors.
- Other Models
-
Here you find 305 models, 158 with images and 246 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from DuMont Labs, Allen B., Inc.
Forum contributions about this model: DuMont Labs, Allen B: Sirius W367E
Threads: 1 | Posts: 4
Salve a tutti, la domanda a cui vorrei una risposta è la seguente: la Dumont è una marca Americana, però l'apparecchio Dumont che mi hanno portato, a suo tempo acquistato nuovo in Italia, è fabbricato in Germania. Sulla targa è riportato il modello SIRIUS W367E, monta le seguenti valvole: ECC85 ECH81 EF 89 EABC80 EL84 EM80 con raddrizzatore a doppia semionda al selenio. Monta un giradischi Perpetuum-Ebner. Vorrei delle delucidazioni su come può essere, se lo devo mettere su Museum come lo classifico, apparecchio USA oppure D?. Cerco possibilmente anche lo schema.
Grazie a tutti.
Fabio Masetti
P.S. Allego delle foto.
Attachments

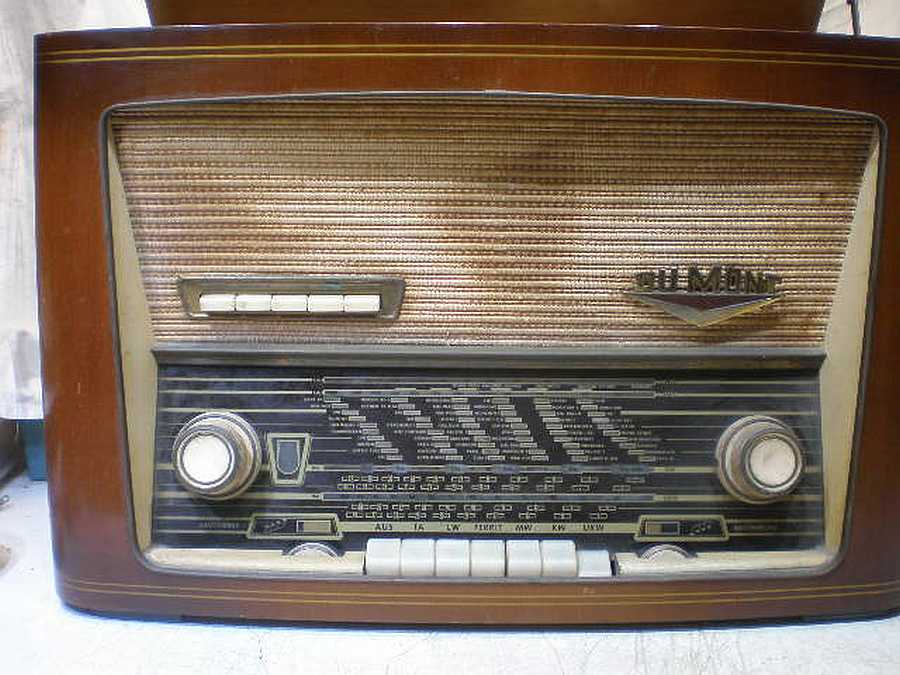

- mobile di fronte (93 KB)
- giradischi (40 KB)

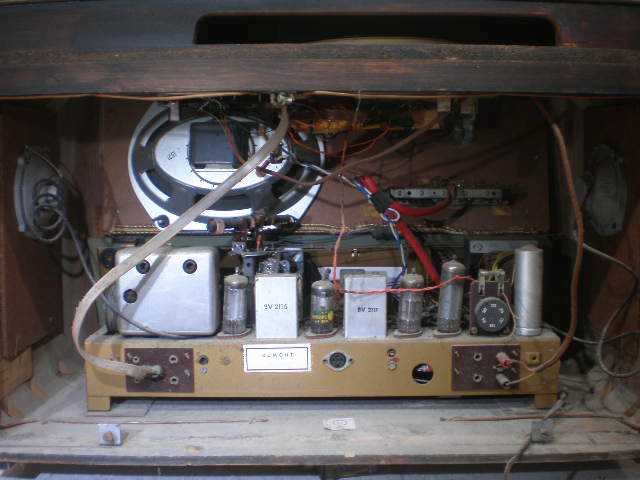

- interno (50 KB)
- tastiera 1 (51 KB)
- tastiera 2 (57 KB)
- targhetta (46 KB)
Fabio Masetti, 09.Feb.17
