1210 Ch= RA-902
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83992
-
- alternative name: Dumont Television & Radio

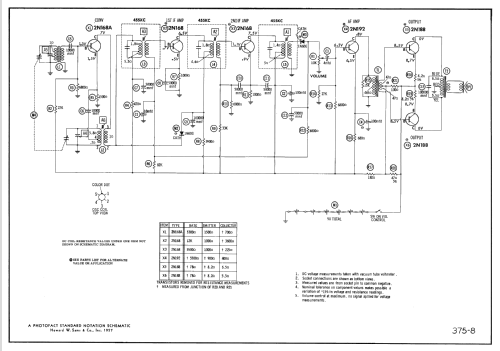

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- 2N168A 2N168 or. 2N293 2N168 or. 2N293 2N192 or. CK882 2N188 or. CK888 2N188 or. CK888 CK706A or. 1N60 or. 1N295
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 x C 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 1210 Ch= RA-902 - DuMont Labs, Allen B., Inc.
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Dumont Chassis RA-902 is a battery operated portable AM transistorized receiver.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 375 Folder 8 dated 10-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
