Bradford RA-108A

DuMont Labs, Allen B., Inc.

Data
Forum
Pictures
Collections

  • Year
  • 1949
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 169545
    • alternative name: Dumont Television & Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 35
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Bradford RA-108A - DuMont Labs, Allen B., Inc.
  • Shape
  • Console with any shape - in general
  • Notes

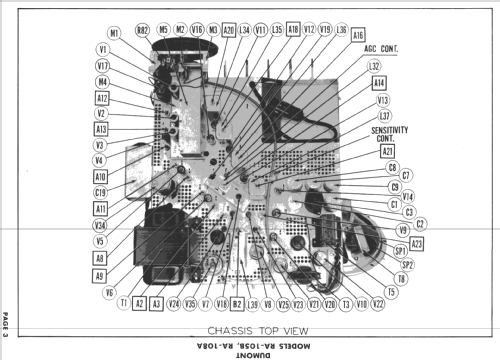

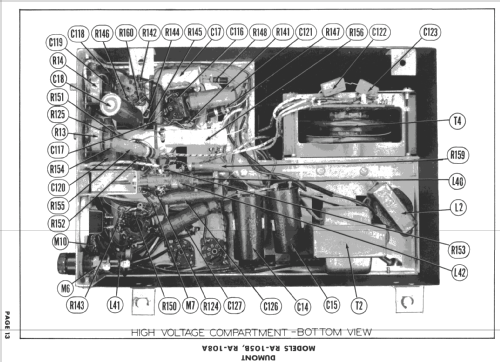

  • The DuMont RA-108 family of 19-inch round CRT TV receivers (or "Telesets" as DuMont called them) have a continuous tuning Mallory-Ware Inductuner (called an "Inputuner" by DuMont) using a triple roller inductor which covers the VHF low, FM, and VHF high bands in one band from 44-216 MHz. A 6AL7GT tuning eye is also provided. The chassis has main unit and a subchassis for HV flyback power supply with voltage doubler.

    There are two models in the family. The RA-108A Bradford is a TV/FM/AM/phono mahogany console. The RA-108A Mansfield is a TV/FM console. Both were introduced in 1949.
  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
  • Literature/Schematics (1)
  • SAMS set 95 folder 3, Rider TV vol. 4 page 5
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
