Cathode-Ray Oscilloscope 301-A
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1953
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 150796
-
- alternative name: Dumont Television & Radio

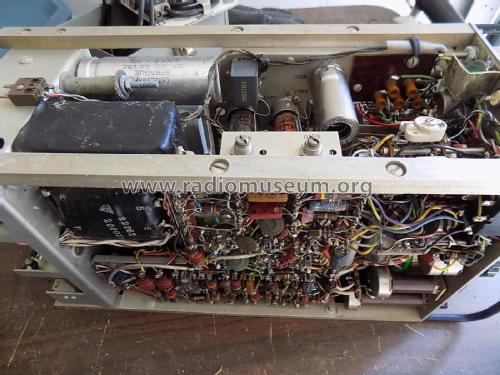

From eBay France N°: 181423415602
From eBay France N°: 181423415602
From eBay France N°: 181423465602
- Number of Tubes
- 1
- Valves / Tubes
- 3WP1
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Cathode-Ray Oscilloscope 301-A - DuMont Labs, Allen B., Inc.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 150 x 200 x 390 mm / 5.9 x 7.9 x 15.4 inch
- Notes
- 1400V accelerating potential. 10Hz to 4MHz vertical bandwidth. Built-in voltage calibrator and time markers. Also supplied with ruggedized tubes, adding 50 USD to the list price.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Price in first year of sale
- 935.00 $
- Literature/Schematics (1)
- Electronics, September 1953
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
