Ch= RA-402
DuMont Labs, Allen B., Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- DuMont Labs, Allen B., Inc.
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 184754
-
- alternative name: Dumont Television & Radio
Sams Photofact Folders reference picture.

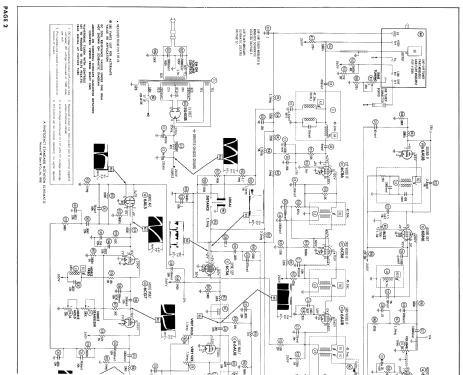

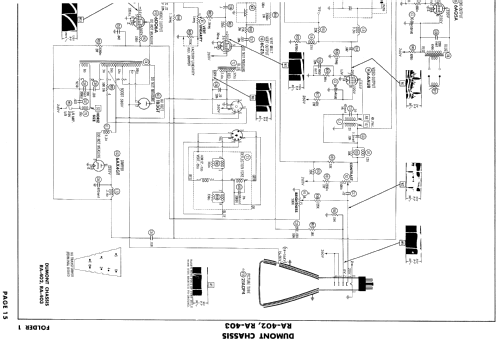

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BK7A 6AT8 6CB6 6CB6 6AU8 6AU8 6BN6 6AQ5 6CS6 6AL5 6CG7 6AX4GT 6CZ5 1B3GT 5U4GB 17BZP4 or 21DAP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ch= RA-402 - DuMont Labs, Allen B., Inc.
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Dumont Chassis RA402 is a 17 or 21" b/w TV with US standard VHF Tuner, Channels 2 thru 13, 14 thru 83 UHF. Some models are available with Picture Tube 17BZP4 or 21DAP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 1)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 388 Folder 14-S dated 2-58)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
