Clifton RA-102-B2

DuMont Labs, Allen B., Inc.

Data
Forum
Pictures
Collections

  • Year
  • 1948 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 169627
    • alternative name: Dumont Television & Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 34
  • Main principle
  • Superheterodyne (common); ZF/IF 26400 21900 456 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Clifton RA-102-B2 - DuMont Labs, Allen B., Inc.
  • Shape
  • Console with any shape - in general
  • Notes
  • The DuMont RA-102 family of TV/FM/AM receivers (or "Telesets" as DuMont referred to them) includes the RA-102-B1 and RA-102-B2 Clifton consoles, and the RA-102-B3 Club large table model.

    The Clifton models use a 12JP4 12-inch CRT, and the Club uses a 15AP4 15-inch CRT.

    The earlier RA-102-B1 version of the Clifton has no focus control on the front panel, while the later RA-102-B2 version includes it, as well as some minor electrical changes to the chassis. The RA-103-B3 Club chassis is electrically identical to that of the the RA-102-B2 Clifton.

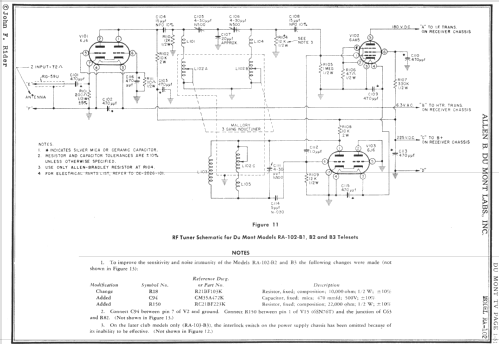

    Like other early DuMont Telesets, the RA-102 family uses a single-band continuous tuning Mallory-Ware Inductuner (or "Inputuner" as DuMont called it) to cover the VHF low (including Channel 1), FM, and VHF high bands from 44-216 MHz. The Inductuner uses a triple roller inductor. Separate AM tuner circuitry is provided with a conventional 2-gang variable capacitor for tuning.

    The HV supply is a pulsed RF type, running in sync with the horizontal sweep, but otherwise indpendent (not coupled to deflection yoke).
  • Literature/Schematics (1)
  • Rider TV vol. 2 page 34
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
